Wi2Wi’s “PDI Brand” Temperature Compensated Crystal Oscillators (TCXO) ensure a precise frequency under demanding circumstances. With ultra-low phase noise, low jitter, high vibration tolerances, a variety of popular packages, and hermetically sealed quartz crystals. PDI Brand TCXOs are offered in standard and custom frequencies. Wi2Wi provides fast sampling from customer’s proto-typing needs through mass production and offer competitive pricing and on-time deliveries.
Request FormType/Series | Image | Package | Output | Frequency Range | Dimensions | Spec File | Features |
TV02 |  | SMD Seam Welded | Clipped Sine | 10MHz to 52MHz | 2.5 x 2.0 x 0.8mm |  | Small Footprint |
TV03 | | SMD Seam Welded | Clipped Sine | 10MHz to 52MHz | 3.2 x 2.5 x 1.0mm | | Small Footprint |
TV05 |  | SMD Seam Welded | TTL/CMOS LVCMOS Clipped Sine | 10MHz to 52MHz | 5.0 x 3.2 x 1.5mm | | 5V Available |
TV07 |  | SMD Seam Welded | TTL/CMOS LVCMOS Clipped Sine | 8MHz to 52MHz | 7.0 x 5.0 x 2.3mm | | 5V Available |

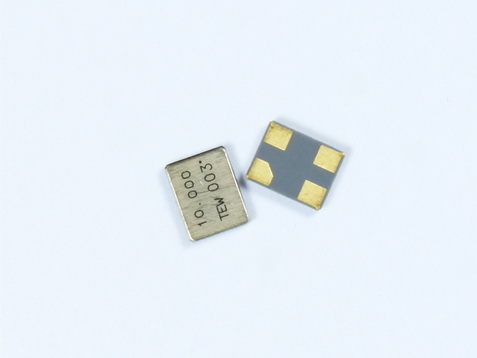

TC02 |  | SMD Seam Welded | Clipped Sine | 10MHz to 52MHz | 2.5 x 2.0 x .9mm | | Small Footprint |

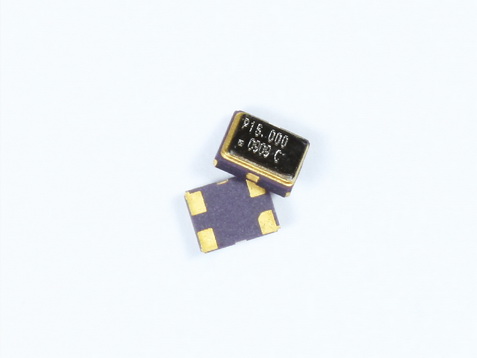

TC03 |  | SMD Seam Welded | Clipped Sine | 10MHz to 52MHz | 3.2 x 2.5 x 1.0mm | | Small Footprint |

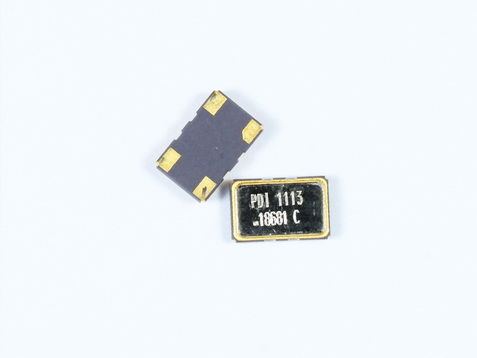

TC05 |  | SMD Seam Welded | TTL/CMOS LVCMOS Clipped Sine | 10MHz to 52MHz | 5.0 x 3.2 x 1.5mm | | 5V Available |

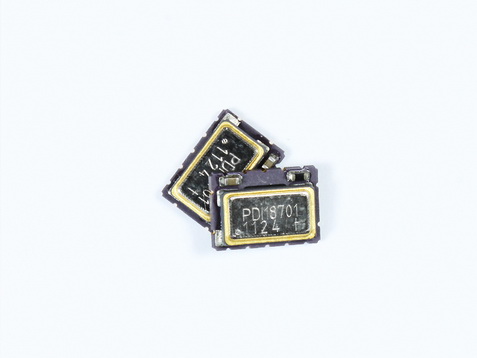

TC07 |  | SMD Seam Welded | TTL/CMOS LVCMOS Clipped Sine | 8.0.MHz to 52.0MHz | 7.0 x 5.0 x 2.3mm | | 5V Available |
TLT3 |  | SMD | CMOS | 32.768KHz | 3.28 x 2.50 x 1.30mm | | |

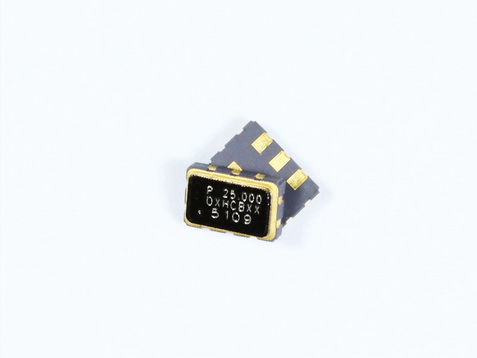

VC05 |  | SMD | HCMOS TTL | 1.0MHz to 125.0MHz | 5.0mm x 3.2mm | | Ceramic |

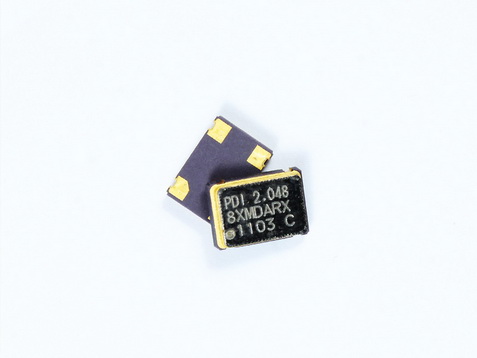

VC07 |  | SMD | HCMOS TTL | 10MHz to 250MHz | 5.0 x 7.0mm | | Ceramic,Low Jitter,Low Profile |

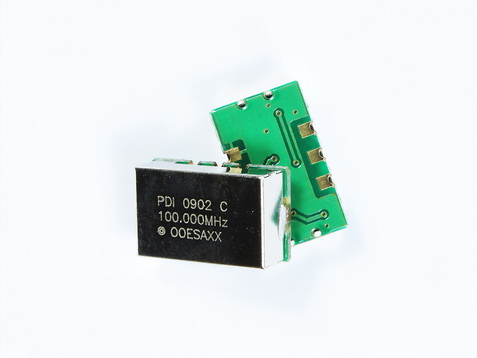

VC29 |  | SMD | HCMOS PECL TTL | 4.0MHz to 100.0Mhz | 14.0 x 9.6 x 6.4mm | | Low Jitter,Low Profile |

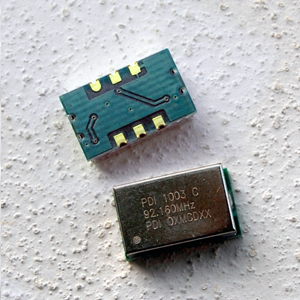

VC40 |  | SMD | LVDS LVPECL | 60.0MHz to 800.0MHz | 14.0 x 9.6 x 6.4mm | | Low Profile |
