Qualified Product List (QPL) Crystals are quartz crystal products that are certified to meet MIL-PRF-3098. Wi2Wi designs and manufactures their globally recognized “PDI Brand” QPL Crystal units in the own ISO Certified factory in Middleton, Wisconsin. These Rugged, Robust and Highly Reliable Military Grade QPL Crystals are hermetically sealed and undergo extensive reliability testing to meet the most demanding specifications and applications. All crystals are available in a wide range of frequencies, from 2.25MHz to 61MHz and also comes in custom frequencies to meet each customer’s unique requirements. QPL crystals are available in through-hole (THT) and Surface Mount (SMD) packaging with variety of footprints; TO-5, HC-49, HC-50, HC-48. These MIL-PRF-3098 Crystals ideal for various applications in Military, Avionics, and Space. Wi2Wi provides fast sampling for your prototyping needs, mass production capability, and competitive pricing.
Request FormType/Series | Image | Package | Output | Frequency Range | Dimensions | Spec File | Features |

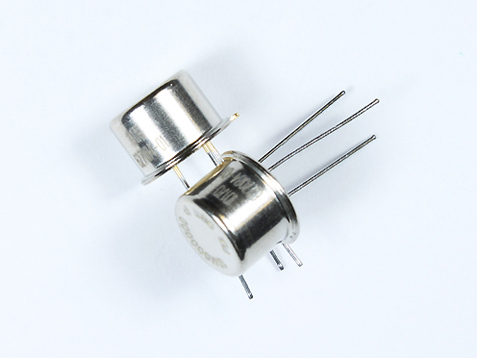

CR101/U |  | Thru-Hole | N/A | 7 MHz to 20 MHz | 10.67 x 6.73mm |  | TO-5 |

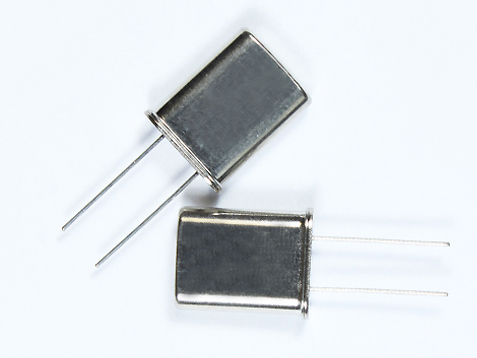

CR106/U |  | Thru-Hole | N/A | 10.5MHz to 11.5 MHz | 11.05 x 4.65 x 13.46mm | | HC-49 |
CR117/U | | Thru-Hole | N/A | 30MHz to 61 MHz | 11.05 x 4.65 x 13.46mm | | HC-50 |

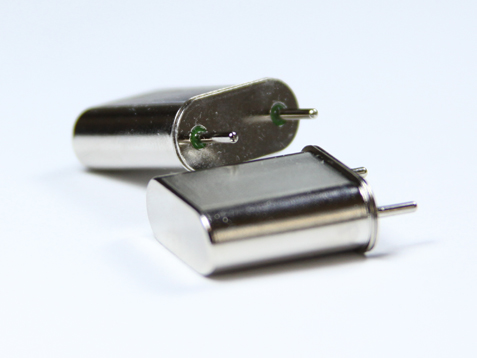

CR119/U |  | Thru-Hole | N/A | 2.25MHz to 20 MHz | 19.23 x 8.95 x 19.70mm | | HC-48 |
CR125/U | | Thru-Hole | N/A | 2.25MHz to 3.05 MHz | 19.23 x 8.95 x 19.70mm | | HC-48 |
CR130/U | | Thru-Hole | N/A | 2.25MHz to 20 MHz | 19.23 x 8.95 x 19.70mm | | HC-48 |
CR139/U | | Thru-Hole | N/A | 20MHz to 22 MHz | 11.05 x 4.65 x 13.46mm | | HC-49 |
CR157/U | | Thru-Hole | N/A | 2.25MHz to 61 MHz | 19.23 x 8.95 x 19.70mm | | HC-51 |
CR18/U | | Thru-Hole | N/A | 2.25MHz to 20MHz | 19.23 x 8.95 x 19.70mm | | HC-48 |
CR19/U | | Thru-Hole | N/A | 2.25MHz to 20MHz | 19.23 x 8.95 x 19.70mm | | HC-48 |
CR27/U | | Thru-Hole | N/A | 2.25MHz to 20MHz | 19.23 x 8.95 x 19.70mm | | HC-48 |
CR28/U | | Thru-Hole | N/A | 2.25MHz to 20MHz | 19.23 x 8.95 x 19.70mm | | HC-48 |
CR35/U | | Thru-Hole | N/A | 2.25MHz to 20MHz | 19.23 x 8.95 x 19.70mm | | HC-48 |
CR36/U | | Thru-Hole | N/A | 2.25MHz to 20MHz | 19.23 x 8.95 x 19.70mm | | HC-48 |
CR55/U | | Thru-Hole | N/A | 17MHz to 62 MHz | 11.05 x 4.65 x 13.46mm | | HC-49 |
CR60/U | | Thru-Hole | N/A | 5MHz to 20 MHz | 11.05 x 4.65 x 13.46mm | | HC-49 |
CR61/U | | Thru-Hole | N/A | 17MHz to 61 MHz | 11.05 x 4.65 x 13.46mm | | HC-49 |
CR62/U | | Thru-Hole | N/A | 2.25MHz to 20 MHz | 19.23 x 8.95 x 19.70mm | | HC-48 |
CR64/U | | Thru-Hole | N/A | 2.4MHz to 20 MHz | 11.05 x 4.65 x 13.46mm | | HC-49 |
CR67/U | | Thru-Hole | N/A | 17MHz to 62 MHz | 11.05 x 4.65 x 13.46mm | | HC-49 |
CR69/U | | Thru-Hole | N/A | 2.9MHz to 25 MHz | 11.05 x 4.65 x 13.46mm | | HC-49 |
CR72/U | | Thru-Hole | N/A | 17MHz to 61 MHz | 11.05 x 4.65 x 13.46mm | | HC-49 |
CR76/U | | Thru-Hole | N/A | 16MHz to 61 MHz | 11.05 x 4.65 x 13.46mm | | HC-49 |
CR77/U | | Thru-Hole | N/A | 17MHz to 62 MHz | 11.05 x 4.65 x 13.46mm | | HC-50 |
CR78/U | | Thru-Hole | N/A | 2.2MHz to 20 MHz | 11.05 x 4.65 x 13.46mm | | HC-50 |
CR79/U | | Thru-Hole | N/A | 2.9MHz to 20 MHz | 11.05 x 4.65 x 13.46mm | | HC-50 |
CR81/U | | Thru-Hole | N/A | 17MHz to 61 MHz | 11.05 x 4.65 x 13.46mm | | HC-50 |
CR84/U | | Thru-Hole | N/A | 16MHz to 61 MHz | 11.05 x 4.65 x 13.46mm | | HC-50 |
CR85/U | | Thru-Hole | N/A | 2.25MHz to 20 MHz | 19.23 x 8.95 x 19.70mm | | HC-48 |
CR89/U | | Thru-Hole | N/A | 2.25 MHz to 6.2 MHz | 11.05 x 4.65 x 13.46mm | | HC-50 |
CR97/U | | Thru-Hole | N/A | 8 MHz to 10 MHz | 11.05 x 4.65 x 13.46mm | | HC-49 |
