PDI brand Oven Controlled Crystal Oscillators (OCXO) from Wi2Wi ensure a precise frequency under the most demanding circumstances. With ultra-low phase noise, high vibration tolerances, a variety of popular packages, and double hermetically sealed quartz crystals. PDI Brand OCXOs are offered in standard and custom frequencies. Wi2Wi provides fast sampling from customer’s proto-typing needs through mass production and offer competitive pricing and on-time deliveries.
Request FormType/Series | Image | Package | Output | Frequency Range | Dimensions | Spec File | Features |

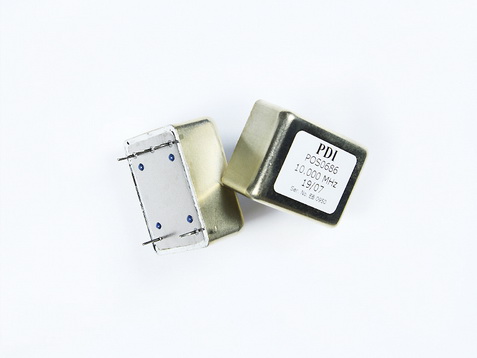

VN01 |  | Thru-Hole | SINEWAVE into 50ohms | 5MHz to 100Mhz | 35.5 x 25.4 mm |  | Low Phase Noise |

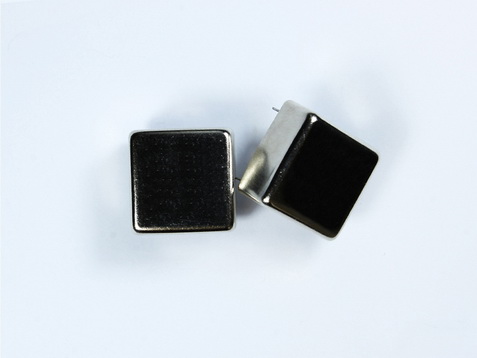

VN03 |  | Thru-Hole | SINEWAVE into 50ohms | 5MHz to 100Mhz | 25.4 x 25.4 mm | | Low Phase Noise |

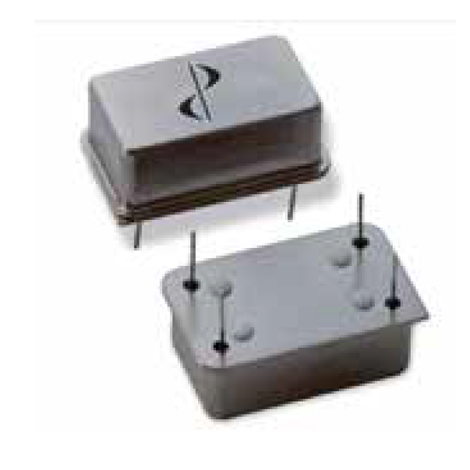

VN04 |  | Thru-Hole, Gull Wing | HCMOS / LVCMOS | 10MHz to 50MHz | 20.20L x 12.52W x 7.80H mm | | Ultra-Low Phase Noise |
VN05 |  | SMD | TTL / CMOS / SINEWAVE | 10MHz to 50MHz | 25.4L x 22W mm | | Low Phase Noise |
